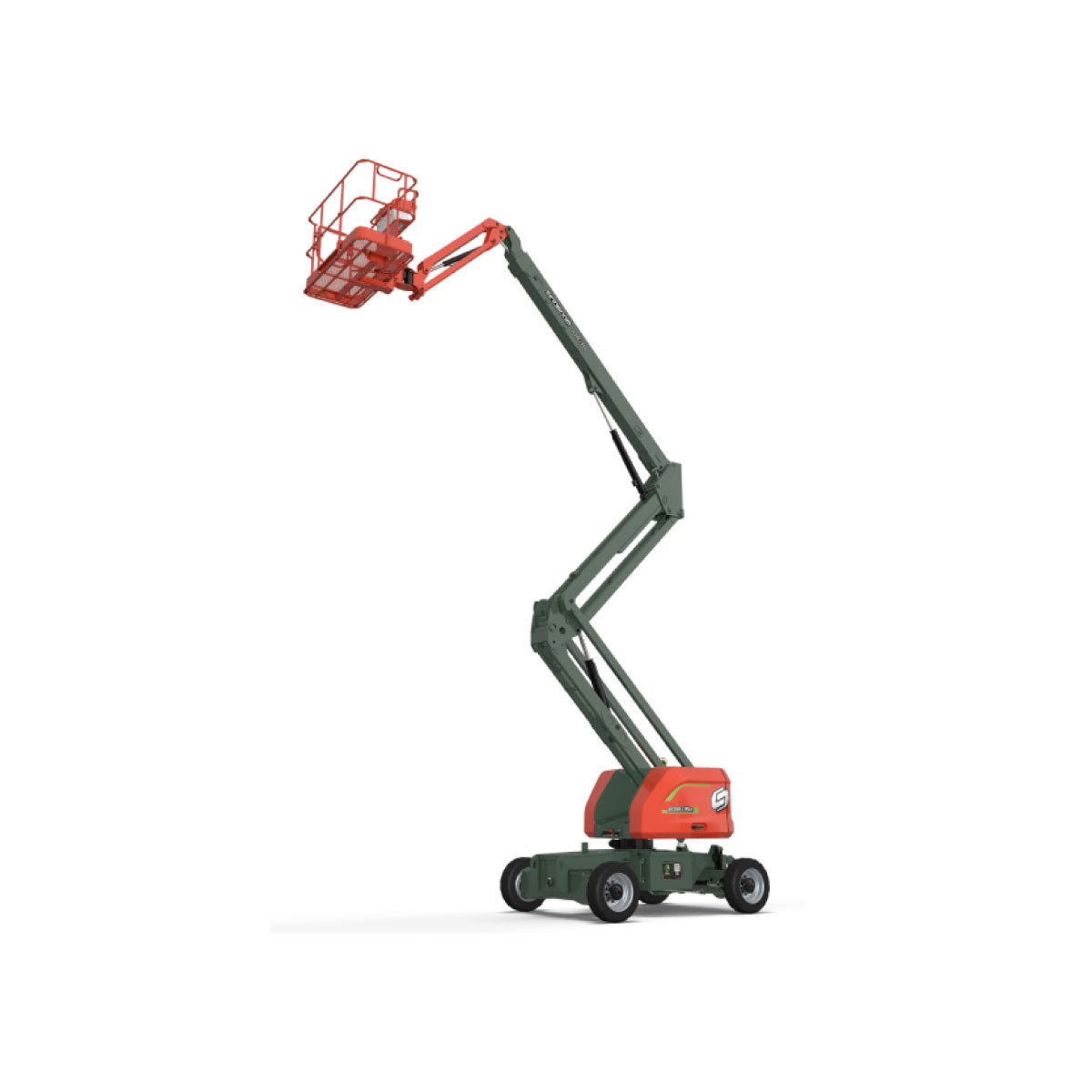

17.8m / 51FT Electric Articulating Boom Lift - SINOBOOM AB16EJ+

Offering an impressive 17.8m maximum working height and up to 9m horizontal reach, the AB16EJ Plus provides excellent access to elevated and hard-to-reach work areas.

The SINOBOOM AB16EJ Plus Electric Articulating Boom Lift is a powerful and versatile access solution designed for construction, maintenance, industrial and infrastructure applications. Offering an impressive 17.8m maximum working height and up to 9m horizontal reach, the AB16EJ Plus provides excellent access to elevated and hard-to-reach work areas.

Powered by an efficient electric system, the AB16EJ Plus delivers quiet, low-emission operation, making it an excellent choice for indoor projects, warehouses, commercial sites, industrial facilities and worksites where reduced noise and emissions are important.

Featuring 4WD × 2WS, active oscillation and 40% gradeability, this electric boom lift combines strong terrain capability with excellent manoeuvrability. Non-marking tyres also make it suitable for applications where protecting finished surfaces is essential.

The spacious 1.83m platform provides operators with a comfortable working area, while proportional controls and hydraulic platform levelling help deliver smooth and precise positioning at height.

Key Features

• Maximum working height: 17.8m
• Maximum platform height: 15.8m

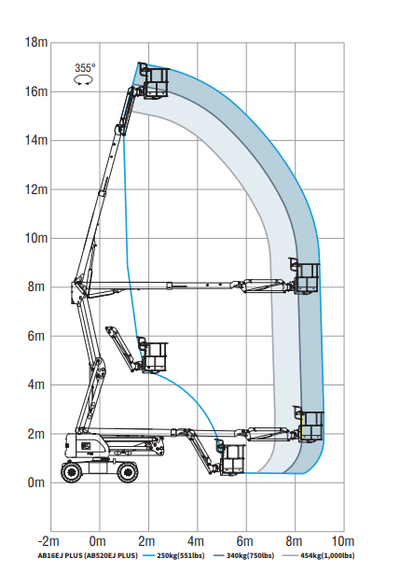

• Maximum horizontal reach: up to 9m
• Platform capacity: 250kg unrestricted
• Restricted platform capacities up to 340kg / 454kg
• 4WD × 2WS
• 40% gradeability
• 355° non-continuous turntable rotation
• 180° platform rotation
• Active oscillating function
• Hydraulic platform levelling
• Proportional controls
• Non-marking tyres
• Secondary guarding system
• 5-inch display screen
• Telematics-ready connector
• White noise alarm
• Lithium battery
• AS/NZS 1418 compliant

Ideal Applications

The SINOBOOM AB16EJ Plus boom lift is ideal for a wide variety of elevated access applications including construction, electrical work, building maintenance, warehouses, industrial facilities, cladding, infrastructure projects, installations and general maintenance.

Its articulated boom design allows operators to reach up, over and around obstacles, providing greater flexibility than conventional vertical access equipment.

For projects requiring a reliable 17.8m electric boom lift, the SINOBOOM AB16EJ Plus delivers an excellent combination of reach, capacity, manoeuvrability and electric performance.

Enquire today about SINOBOOM AB16EJ Plus Electric Boom Lift hire and get the right access equipment for your next project.
