SP039-E Mini Scissor Lift – 5.9m Electric DINGLI

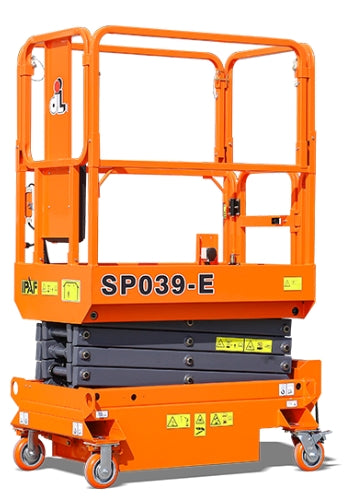

DINGLI SP039-E Mini Scissor Lift 5.9m

The DINGLI SP039-E Mini Scissor Lift is a compact, lightweight electric access solution designed for indoor elevated work where space and manoeuvrability are limited. With a maximum working height of 5.9 metres and a safe working load of 240kg, the SP039-E is ideal for maintenance, construction, electrical, fit-out and facility management applications.

At just 760mm wide, the SP039-E is designed to access confined work areas and can be transported easily between job sites. Its compact dimensions and battery-powered operation make it particularly suitable for indoor environments where low noise and zero exhaust emissions are important.

The SP039-E features a 3.9m maximum platform height, providing a working height of up to 5.9m, while its compact 1.30m overall length allows it to operate efficiently in restricted spaces.

Key Features

• Maximum working height: 5.90m
• Maximum platform height: 3.90m
• Safe working load: 240kg
• Platform size: 1.15m × 0.70m
• Overall width: 760mm
• Overall length: 1.30m
• Overall height with rails up: 1.92m
• Overall height with rails down: 1.52m
• Overall machine weight: 480kg
• Maximum occupants: 1 person – indoor use
• Battery powered: 12V / 85Ah
• Compact and lightweight design
• Low-noise electric operation
• Zero exhaust emissions
• Easy to transport
• Ideal for confined indoor work areas

Ideal Applications

The DINGLI SP039-E Mini Scissor Lift is suited to a wide range of elevated access applications including:

Building maintenance • Electrical work • Lighting installation • Warehouses • Shopping centres • Facility maintenance • Construction fit-outs • HVAC installation • Signage installation • Painting • Commercial maintenance • Mezzanine access

Its combination of compact dimensions, low machine weight and 5.9m working height makes the SP039-E an excellent choice when a larger scissor lift is unnecessary or access is restricted.

DINGLI SP039-E Specifications

Working Height: 5.90m
Platform Height: 3.90m
Safe Working Load: 240kg
Platform Dimensions: 1.15m × 0.70m
Overall Width: 0.76m
Overall Length: 1.30m
Machine Weight: 480kg
Battery: 12V / 85Ah
Charger: 12V / 15A
Lifting Motor: 12VDC / 0.8kW
Up / Down Speed: 23 / 21 seconds
Maximum Working Slope: 1° / 1°

Compact Electric Access for Indoor Work
