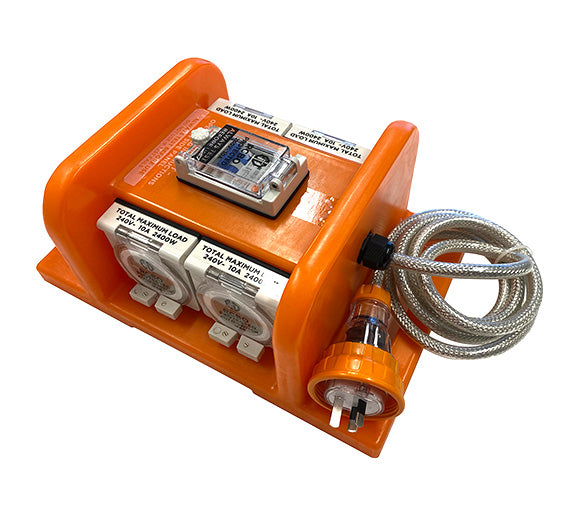

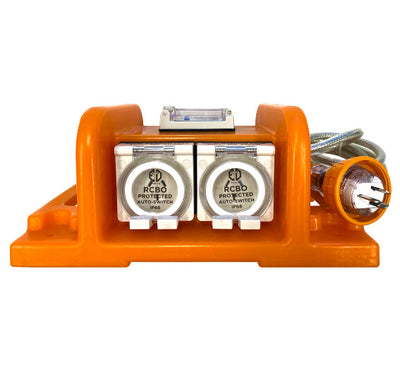

IP66 PSOA Power Board - 4 WAY

4 Way All Weather Electrical Distribution Board from ETD is a heavy-duty IP66-rated portable power board designed for construction sites, demolition projects, industrial workplaces and commercial applications.

4 Way All Weather Electrical Distribution Board for Construction & Industrial Worksites

The 4 Way All Weather Electrical Distribution Board from ETD is a heavy-duty IP66-rated portable power boarddesigned for construction sites, demolition projects, industrial workplaces and commercial applications. Engineered to meet Australian safety standards, this Portable Socket Outlet Assembly (PSOA) provides safe, reliable power distribution in harsh outdoor environments.

Featuring integrated RCBO protection (Residual Current Circuit Breaker with Overcurrent Protection), the board helps protect users from electric shock while preventing overloads and short circuits. With four weatherproof outlets, a heavy-duty braided power lead and rugged impact-resistant housing, it's built to withstand demanding Australian worksite conditions.

Key Features

• IP66-rated for protection against dust and powerful water jets
• Four auto-switched weatherproof outlets (10A or 15A options)
• Integrated RCBO (RCD + MCB) safety protection
• Heavy-duty 1.85m braided screened power lead
• High-impact UV-resistant polyethylene housing
• Wall-mountable design for convenient installation
• Designed for construction, demolition and industrial sites
• Tough, durable construction for Australian conditions
• Available in black or orange
• Complies with AS/NZS 3190:2016 requirements for PSOA devices.

Built for Maximum Safety

Electrical safety is critical on every worksite. ETD's 4 Way Distribution Board incorporates an RCBO that disconnects power immediately if a fault is detected, helping reduce the risk of electric shock while providing overload protection.

The unit is specifically designed for construction and demolition environments where AS/NZS 3012 requires the use of compliant Portable Socket Outlet Assemblies (PSOAs). Its IP66 enclosure protects internal components from dust, rain and high-pressure water, making it ideal for outdoor applications.

Ideal Applications

The ETD 4 Way Power Board is suitable for:

• Construction sites
• Demolition projects
• Commercial building sites
• Industrial facilities
• Civil infrastructure projects
• Mining operations
• Outdoor maintenance work
• Temporary power installations
• Events and exhibitions
• Workshops and warehouses

Technical Specifications

• Product Type: Class PSOA Device
• Voltage: 230–240V AC, 50Hz
• Maximum Load:
  • 10A – up to 2400W
  • 15A – up to 3600W
• Protection: RCBO Type A (30mA)
• Short Circuit Capacity: 10kA
• Power Lead: 3 x 1.5mm² Heavy Duty Braided Screened Cable
• Cable Length: 1.85 metres
• Ingress Protection: IP66
• Housing: UV-resistant high-impact polyethylene
• Compliance: AS/NZS 3190:2016 and suitable for AS/NZS 3012 construction site requirements.
