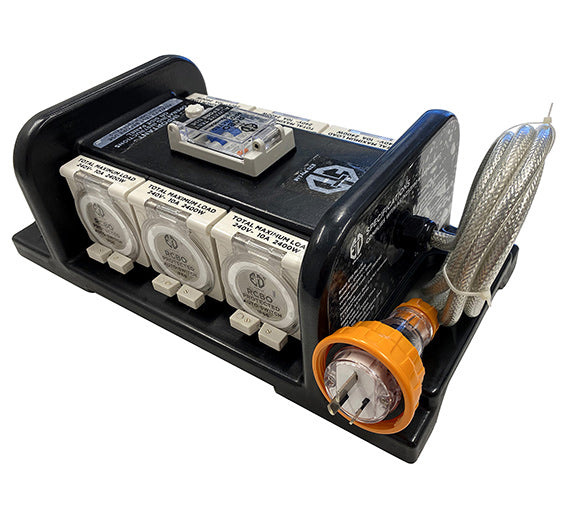

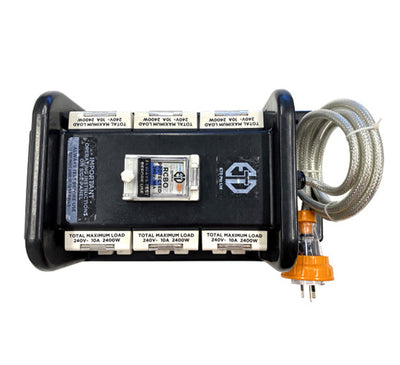

IP66 PSOA Power Board - 6 WAY

6 Way All Weather Electrical Distribution Board from ETD is a heavy-duty Portable Socket Outlet Assembly (PSOA) engineered to provide safe, reliable temporary power

6 Way Portable Electrical Distribution Board for Construction, Industrial & Commercial Applications

The 6 Way All Weather Electrical Distribution Board from ETD is a heavy-duty Portable Socket Outlet Assembly (PSOA) engineered to provide safe, reliable temporary power for construction sites, demolition projects, industrial facilities and commercial worksites. Built to meet stringent Australian Standards, this portable power board combines superior electrical protection with a rugged IP66-rated enclosure designed for harsh outdoor environments.

Featuring an integrated RCBO (Residual Current Circuit Breaker with Overcurrent Protection), six IP66-rated auto-switched outlets, and a heavy-duty braided screened power lead, the ETD 6 Way Distribution Board delivers dependable power distribution while protecting workers from electric shock, overloads and short circuits.

Features of the 6 Way All Weather Electrical Distribution Board

• Six IP66-rated 10A auto-switched outlets
• Integrated RCBO combining RCD and circuit breaker protection
• IP66-rated enclosure for protection against dust and powerful water jets
• Heavy-duty 1.85m braided screened power lead
• High-impact UV-resistant polyethylene housing
• Wall-mountable design
• Fast fault detection and automatic power isolation
• Built for demanding construction and industrial environments
• Available in black or orange
• Manufactured to Australian Standards for portable electrical distribution

Designed for Maximum Worksite Safety

Electrical safety is critical on construction and demolition sites. ETD's 6 Way Distribution Board is manufactured as a Class PSOA Device compliant with AS/NZS 3190:2016 and designed for worksites operating under AS/NZS 3012requirements.

The integrated RCBO continuously monitors electrical current and disconnects power within milliseconds if an earth leakage or overload is detected, helping reduce the risk of serious electrical injury while protecting connected equipment.

Ideal Applications

The 6 Way All Weather Electrical Distribution Board is ideal for:

• Construction sites
• Demolition projects
• Civil infrastructure works
• Mining operations
• Industrial maintenance
• Manufacturing facilities
• Commercial building projects
• Workshops
• Outdoor events
• Temporary site power distribution

Technical Specifications

• Product Type: Class PSOA Device
• Voltage: 230–240V, 50Hz
• Maximum Load:
  • 10A – 2400W
  • 15A – 3600W
• RCBO: Type A, 30mA
• Short Circuit Capacity: 10kA
• Power Lead: 1.85m Heavy Duty Braided Screened Cable
• Outlets: Six 10A IP66 Auto-Switched Sockets
• IP Rating: IP66
• Housing: High Impact UV Resistant Polyethylene
• Compliance: AS/NZS 3190:2016, AS/NZS 3012, AS/NZS 3112 & AS/NZS 3100
