ELECTRIC SCISSORLIFT

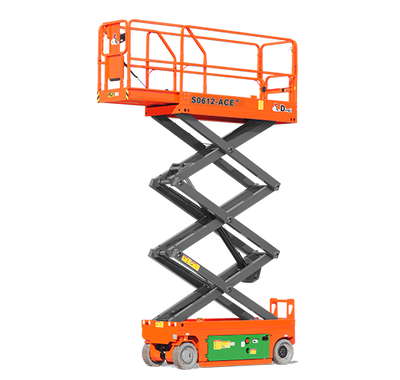

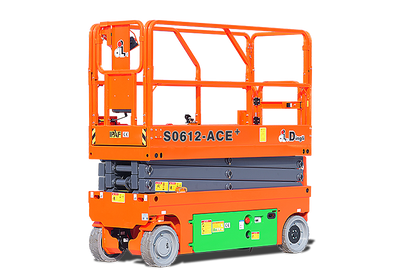

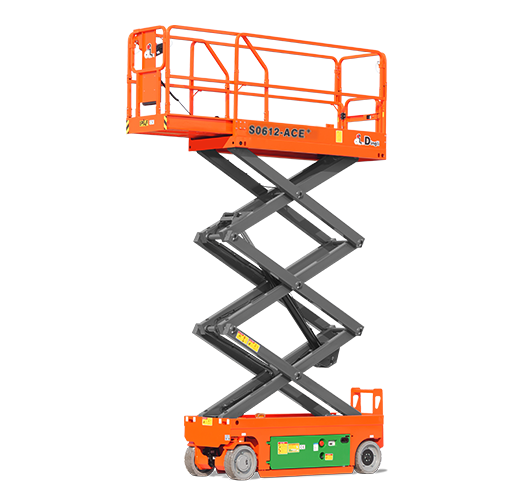

6m/19ft 8in Electric Scissorlift - Dingli S0612-ACE+
MASSIVE 540KG SAFE WORKING PAYLOAD
Cat Code: TBA
● Reliability+
5.Integrated Four-in-One Motor Controller - 40% reduction in connections and harnesses
6.New Platform Control Box - The durability of the touch pad is greatly improved, the new surface cleans easily, and the display is three times larger
7.Reliable Load Sensing System - Less affected by temperature and friction, scissor angle sensor reliability improvement
● Environment+
8. Hydraulic Oil Leak Containment - For applications with zero leak tolerance
9. Electric Actuator Steering System - No hydraulic oil, faster steering speed and 66% reduction in energy consumption
10. Gravity Down Energy Recovery System - Battery charge regeneration during platform descent
11. Highest Efficiency Electric Drive System - 15% decrease in energy consumption and higher power density
12. Highest Efficiency Electric Lift Pump System - 20% decrease in energy consumption and higher power density
Quick enquiry
Send the hire desk your details with this product already included.
Features
6 key points- Electric Actuator Steering System
- Energy Recovery System
- 15% decrese in Energy Consumption
- Massive payload of 540kgs
- Lithium-Ion Battery
- High Strength Tyre Compound
Specifications
Product data- Manufacturer
- Dingli
- Fuel Source
- 28.8V/175Ah Lithium-Ion Battery
- Length
- 2.48m
- Width
- 1.15m
- Height
- 2.23m
- Weight
- 1990kgs
- Drive Type
- 2×15VAC/0.87kW
- Max Working Height
- 8.00m/26ft 3in
- Max Platform Height
- 6.00m/19ft 8in
